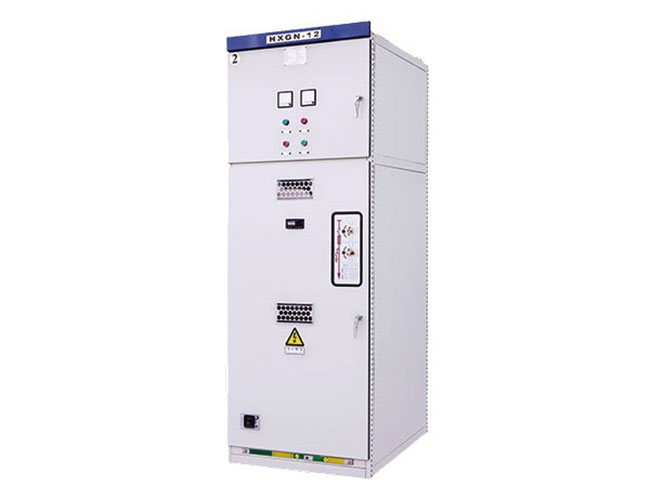

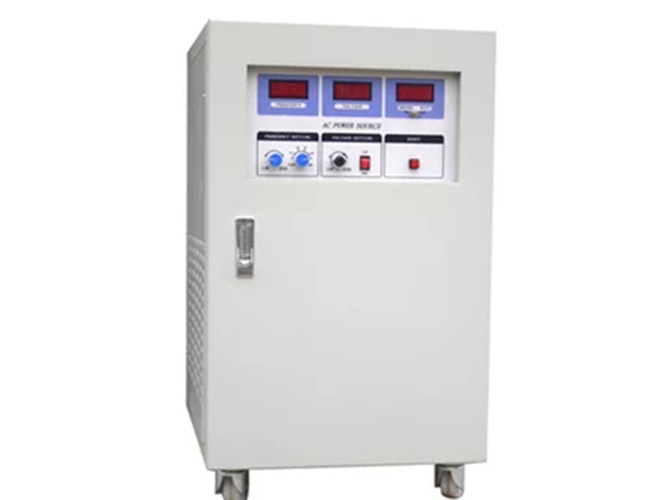

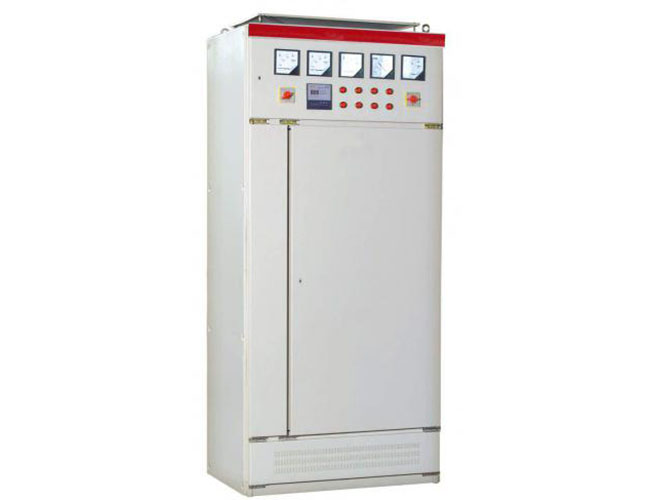

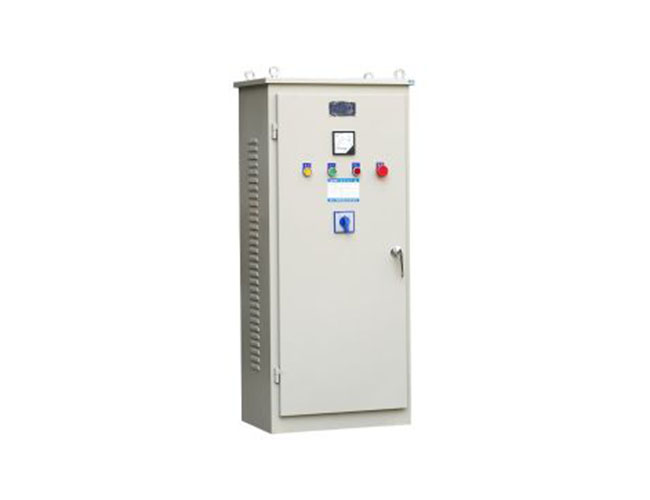

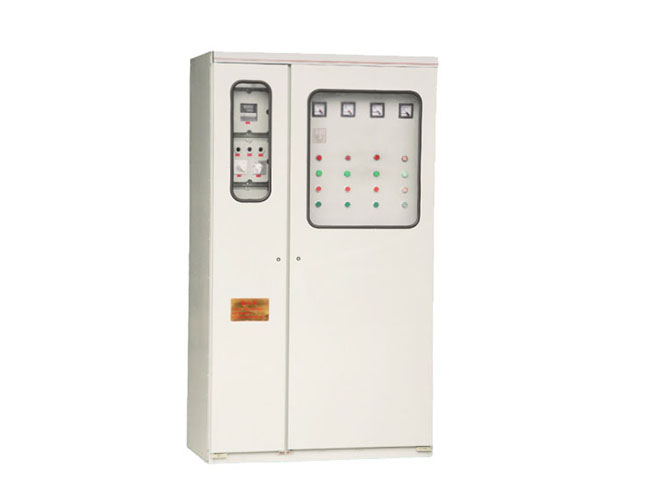

Power cabinets are mainly used in substations and power plants, as well as power systems in large projects. The design and production conform to relevant standards, are safe and reliable, and have strong versatility. The main material of the cabinet is 1.2-2.0mm high-quality cold-rolled steel plate, and the frame is welded. Built-in cabinet door, the front door is made of 5mm tempered glass.

There are two types of power cabinets, one is the distribution cabinet and the other is the control cabinet. The power cabinet is composed of shell, steel structure and various installation boards, power components, power instrumentation, measurement and control devices and cables. The power cabinet has comprehensive technology and is manufactured in accordance with national standards and certain technical specifications.

Production standard:

1. The power cabinet adopts stainless steel door shaft, dual-source special terminal box handle, and the inside of the box door is equipped with a limit and anti-rebound mechanism;

2. The door and the box are fully enclosed, equipped with sealing rubber strips and waterproof grooves, which have the four-proof function of rain, wind, sand and dust;

3. The lead knockout hole is improved to an "I"-shaped detachable structure, which facilitates the introduction of cables;

4. The outside of the box adopts micro-mark and non-mark production technology to make the appearance more beautiful;

5. The box is made of imported stainless steel, with good strength, high hardness, beautiful surface, good sealing, strong corrosion resistance, long life and easy maintenance.

Features:

The cabinet in the power industry adopts the specifications and structure of the standard network cabinet, and the width of the outer dimension of the cabinet is expanded to 800mm, which makes the equipment compartment in the cabinet more spacious. The front door of the cabinet is a built-in tempered glass main door, the rear door is a split cold-rolled steel door, and a 60mm screen eyebrow is installed on the top of the cabinet, which is beautiful and elegant.

The interior can be configured with movable cotton boards and electrical beams for easy wiring. The structure can choose various beam and column structures, and the concept of complete modularization makes the use more flexible and convenient. According to the actual application requirements, different specifications of power cabinets suitable for indoor or outdoor installation and use can be produced, all of which can reach the protection level standard.

Features of power cabinet manufacturing process:

1. The tortuous and empty features of the material in the manufacturing process of the power cabinet: the tortuous feature is the shape generated by the tortuous processing process. A meandering feature is indicated by the geometric elements and meandering features that make up the feature. Hole features usually depend on other features. The data structure of a hole is fundamentally the same as that of a plane feature.

2. The plane shape of the part is formed by the plane characteristics of the material in the manufacturing process of the power cabinet, which is the fundamental part of the part, the part that connects and twists, and also the parent of some forming and punching. The geometry of the planar feature is represented by a chain loop of graphic elements.

3. Part of the forming features and user-defined features of the material in the manufacturing process of the power cabinet, and the part of the forming features is the shape that occurs on the stamping parts by part of the forming process. Usually its shape is fixed and the scale is different, so it can be expressed by parameters; user-defined features are often used because of the variety of sheet metal parts, so the feature modeling system must provide users with customized features method.

JAVA Metal has a number of imported advanced equipment and a complete set of processing technology. The company specializes in the production of self-service equipment cabinets, network cabinets, communication cabinets, power cabinets, monitoring cabinets and energy storage cabinets. The company has passed the ISO9001-2008 international quality system certification, and is a sheet metal processing manufacturer integrating R&D, production, processing and after-sales service.
