The frame refers to the frame of flat objects such as hanging screens and mirrors, and also refers to the straight material or its surface on the side of the hole, while the sheet metal frame generally refers to the metal frame. The metal frame looks more textured and has a longer service life than the plastic frame. and strong corrosion resistance.

Metal is good-looking and gives people a taller feeling. Metal is also easier to make narrow bezels, and metal makes you subconsciously feel that such a TV is of better quality, and there are generally few colors.

The plastic ones are also good-looking. They are easier to color and more fancy. There are many colors to choose from. Generally, they are not used for narrow borders.

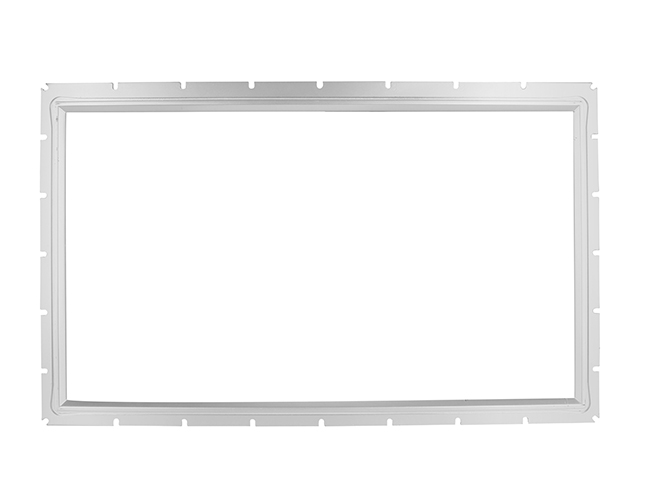

The LCD metal frame is a low-carbon and environmentally friendly product. It is very hard in nature, very firm in installation, durable in use, and has strong resistance to resistance. It can also be customized for the items used.

The processing technology of sheet metal frame includes:

1. Blanking:

There are many ways of blanking, which refers to the process of laser cutting or CNC punching and shearing. NC CNC blanking and laser cutting blanking can be used for thicker and more complex sheet metal processing parts; shears can cut out workpieces with larger shapes, lengths and widths; punching machines can use punching machines in batches to cut workpiece shapes and holes. processed.

2. Punching holes

Punching is also called flanging, which refers to the process of using a die to form a round hole on the workpiece on an ordinary punch or other stamping equipment. It is to draw a hole of a specified size on the pre-punched hole, which can make the teeth tapped by the workpiece stronger. It is generally used on workpieces with a thickness of less than 1.5mm.

3. Pressure riveting

Generally, it refers to the process of firmly riveting and crimping riveting studs, riveting nuts, riveting screws, etc. on the workpiece by using a punch or hydraulic riveting machine.

4. Bending

Bending is a process in which a workpiece is formed by a bending machine with a bending machine and related bending dies, which can strengthen the strength of the workpiece to a certain extent.

5. Welding

Common types of welding processes include two-shielded welding, argon arc welding, electric welding, robot welding and butt welding, etc. The process is mainly to weld 2 or more parts together to achieve the purpose of processing finished products or assembled parts; Or the edge seam of a single part needs to be welded to make the bending edge precise to increase the edge folding strength.

6. Surface treatment

The surface treatment includes phosphating coating powder spraying, electroplating colorful zinc, chromate, baking paint, oxidation, etc. After the phosphating coating, the workpiece can be electrostatic powder sprayed, which is suitable for cold-rolled sheets and galvanized sheets; electroplating colorful zinc is generally used for cold-rolling. Surface treatment of plates and machined parts; chromate and oxidation are generally used for surface treatment of aluminum and aluminum profiles; surface treatment is to make the sheet metal parts look beautiful as a whole and protect themselves. The specific surface treatment method is determined according to the requirements of the customer's material.

7. Assembly

It is to assemble multiple parts or components together according to the requirements of the drawings to form a complete workpiece product. The assembled workpiece may be a finished product or a semi-finished product.

Sheet metal common materials:

1. Ordinary cold rolled sheet

Cold-rolled sheet refers to the continuous rolling of steel ingots into steel coils or sheets of required thickness through a cold rolling mill. The surface of the cold-rolled sheet has no protection, and is easily oxidized when exposed to the air. Especially in a humid environment, the oxidation speed is accelerated, and dark red rust appears. The surface should be painted, electroplated or otherwise protected when in use.

2. Galvanized steel sheet

The base material of galvanized steel sheet is a general cold-rolled steel coil, which becomes an electro-galvanized product after degreasing, pickling, electroplating and various post-treatment processes in a continuous electro-galvanizing production line. Galvanized steel sheet not only has the mechanical properties and similar workability of general cold-rolled steel sheet, but also has superior corrosion resistance and decorative appearance. It has great competition and substitution in the market of electronic products, home appliances and furniture. For example, galvanized steel is commonly used in computer cases.

3. Hot dip galvanized steel sheet

Hot-dip galvanized steel coil refers to the semi-finished product after hot-rolling pickling or cold-rolling, after cleaning, annealing, and immersing in a molten zinc bath with a temperature of about 460 ° C, so that the steel sheet is plated with a zinc layer, and then quenched and tempered. Flattened and chemically treated. Hot-dip galvanized steel material is harder than galvanized steel material, has poor ductility, thicker zinc layer, and poor weldability.

4. Stainless steel SUS301

The content of Cr (chromium) is lower than that of SUS304, and the corrosion resistance is poor, but it can obtain good tensile force and hardness after cold working, and has good elasticity. It is mostly used for shrapnel springs and anti-EMI.

5. Stainless steel SUS304

One of the most widely used stainless steels, because it contains Ni (nickel), it is richer in corrosion resistance and heat resistance than steel containing Cr (chromium), has very good mechanical properties, has no heat treatment hardening phenomenon, and has no elasticity.

JAVA Metal can provide the customised processing services of cold-rolled plate, hot-rolled plate, galvanized plate, copper plate, aluminum alloy, stainless steel and other materials.
